Standard Products
Quality Through Diligence
Ibeos specializes in delivering robust space electronics built to standards that support your advanced applications. Ibeos’ products have a reliability, radiation tolerance, and suite of capabilities that are compatible with more traditional space mission requirements, at the aggressive costs and lead times required of Cubesat and Smallsat missions today.
Power Distribution
Ibeos offers state-of-the-art power conversion, management, and distribution assemblies that are suitable for missions from low earth orbit to interplanetary environments. These products are designed for the space environment. They provide tolerance for both single event and total ionizing dose radiation effects with best-in-class efficiency, size, weight, and power. Custom configurations are also available, contact info@ibeos.com for more information.
Ibeos Modular Power System (MPS) 500 - 2,000 Watts
-
Modular and Scalable power subsystem,
-
Scalable power output
-
Scalable quantities of switches and cmd/tlm channels
-
Supports inclusion of custom interface cards
-
-
Capable of 500- 2,000 Watts of power
-
Up to 98% power conversion efficiency
-
Analog under/over-voltage and over-current protection
-
Two-fault tolerant spacecraft inhibits
-
Spacecraft watchdog
IN PRODUCTION
E28-M500/1000/1500/2000
CURRENTLY IN STOCK
28V/200W Electrical Power Subsystem (EPS)
-
200-Watt S/A input peak power tracker, 3.3-Volt, 5-Volt and 12-Volt outputs, and power distribution functions
-
Radiation-tolerant by design
-
I2C and SPI command, control, and data handling interfaces
-
Analog under/over-voltage and over-current protection
-
Two-fault tolerant spacecraft inhibits
-
Spacecraft watchdog
E28-200
IN PRODUCTION
CURRENTLY IN STOCK
14V/150-Watt CubeSat Electric Power Subsystem (EPS)
-
150-Watt S/A input, peak power tracker, 3.3-Volt, 5-Volt and 12-Volt outputs, and power distribution functions
-
TID of 30 kRad and SEE survival at LET > 55
-
I2C and SPI command, control, and data handling interfaces
-
Under/over-voltage and over-current protection
-
Two-fault tolerant spacecraft inhibits
-
Configurable spacecraft watchdog timer
E14-150
IN PRODUCTION
CURRENTLY IN STOCK
Batteries
Ibeos offers energy storage solutions with a design life that exceeds other Smallsat and Cubesat products on the market today. Ibeos' products are designed with overvoltage, undervoltage, and overcurrent protections. Our acceptance and qualification testing includes cell capacity matching, temperature testing, and life testing to ensure our products are built to the highest standards.

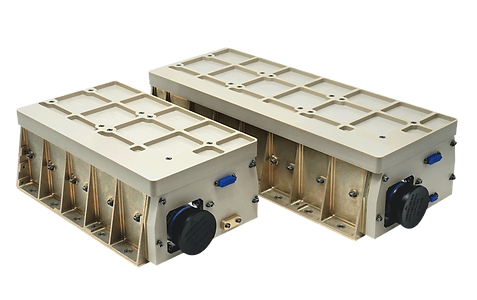

Ibeos Modular Battery
-
Modular design with availablity in multiple sizes:
-
275Whr; 550Whr; 825Whr; or 1100Whr
-
-
Radiation tolerant under/over-voltage and over-current protection
-
Radiation tolerant under/over-voltage and over-current protection
-
Low power inhibit interface allows long term storage and passivation for pre-deployment
-
Integrated redundant heaters and thermistors
IN PRODUCTION
CURRENTLY IN STOCK
B28-M275/550/825/1100
28V / 135 Whr Battery
-
Provides 10A sustained discharge, 2.5A sustained charge currents in a Cubesat-compatible form factor
-
Radiation tolerant under/over-voltage and over-current protection
-
Low power inhibit interface allows long term storage and passivation for pre-deployment
-
Integrated redundant heaters and thermistors
B28-135
IN PRODUCTION
CURRENTLY IN STOCK
50V / 1 kWhr Battery
-
Supports high power operation with >48A sustained discharge, 24A sustained charge currents
-
1 kWhr lithium-ion battery
-
Radiation tolerant under/over-voltage and over-current protection
-
Low power inhibit interface allows long term storage and passivation for pre-deployment
-
Integrated redundant heaters and thermistors
IN PRODUCTION
B50-1000
14V – 45 Whr Modular Smallsat Battery
-
45-Watt-hour modular lithium-ion battery; can be packaged in pairs to create 90 Watt-hour modules
-
Radiation tolerant under/over-voltage and over-current protection
-
Low power inhibit interface allows long term storage and passivation for pre-deployment
-
ISS-compliant
-
Integrated heater and thermistor
IN PRODUCTION
B14-M45
CURRENTLY IN STOCK
14V – 90 Whr Modular Smallsat Battery
-
Side or bottom mounting
-
Aluminum chassis and PEEK cell capture plates
-
Positive temperature coefficient (PTC) overcurrent protection at each cell
-
Designed for mechanical thermal integration with a second module
-
21-Pin Micro-D connector
IN PRODUCTION
B14-M90
CURRENTLY IN STOCK
Computing
Ibeos provides bus and payload computing solutions suitable for all types of space environments. Our radiation tolerant EDGE payload processors provide on-board processing power that ranges from 300 GFLOPS to >1 TFLOPS. Our assemblies provide a mix of serial interfaces for communicating with bus and payload assemblies. Custom configurations are also available, contact info@ibeos.com for more information.
Payload Processor
-
AMD Ryzen-based payload processor with over 1 TFLOPS of processing power
-
Quad-core/8 threads x86 CPU with 512 GPU cores (8xVega 8)
-
Radiation tolerant design ideal for image processing, RF signal processing, SAR, and other high-throughput computationally intensive applications
-
3U SpaceVPX form factor, also available inside a SpaceVPX chassis with power, and other functions (memory, FPGA co-processing, and more)
EDGE-1100
IN PRODUCTION
CURRENTLY IN STOCK
EDGE GPU-Based Payload Processor
-
Powerful processor with 300 GFLOPS for mission data processing
-
4 ARM cores with up to 2 GHz clock speed
-
GPU with 192 CUDA cores
-
Radiation tolerant design ideal for full bus computing functions and advanced payload processing functions all in one
-
Ability to operate in low power mode, ideal for bus computing functions
-
Available in a 1U CubeSat form factor, optionally with a custom 3U SpaceVPX carrier card for integration with a SpaceVPX chassis
EDGE-300
IN PRODUCTION
CURRENTLY IN STOCK
*Please contact us to inquire about our next generation EDGE processing solution, currently under development.
